Product Description

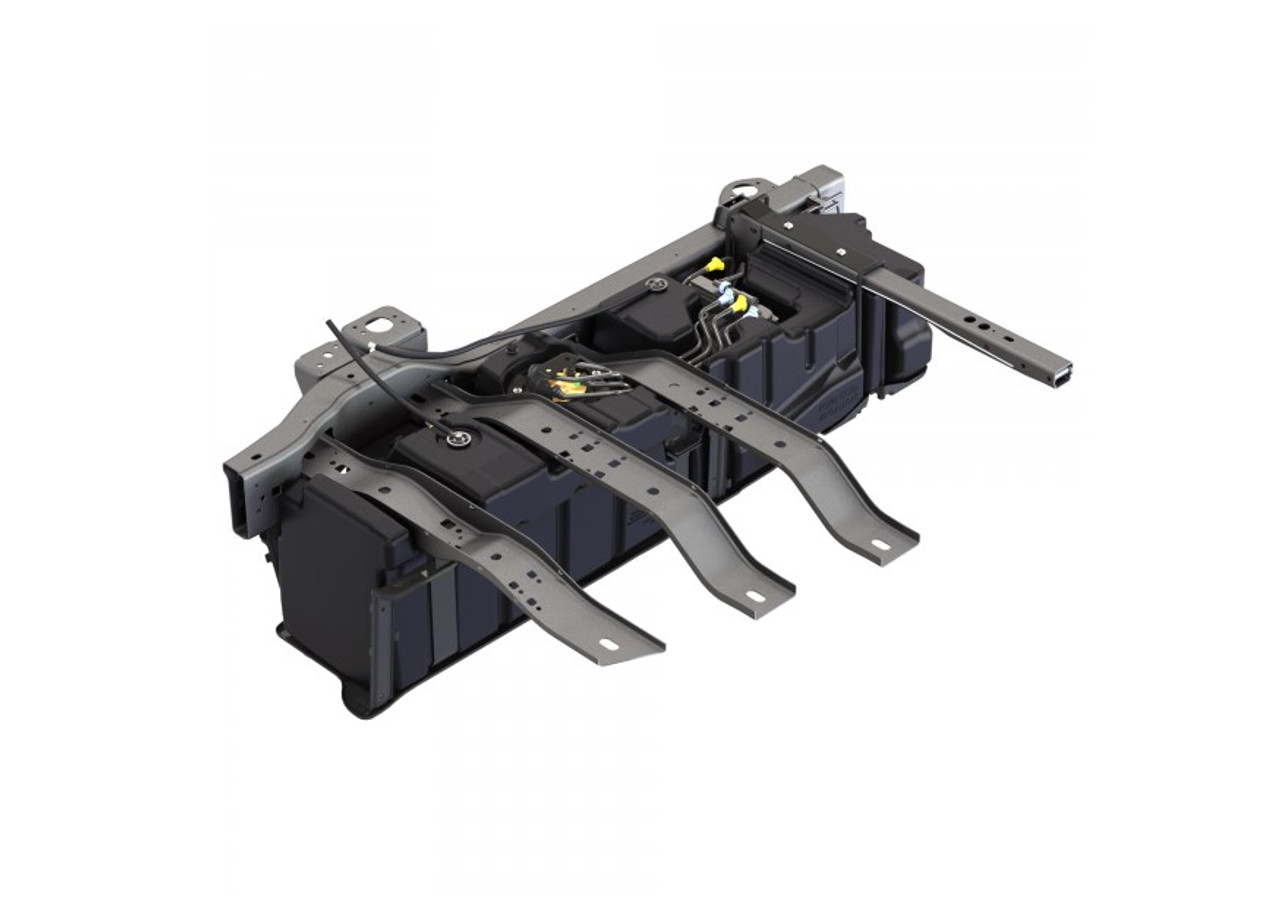

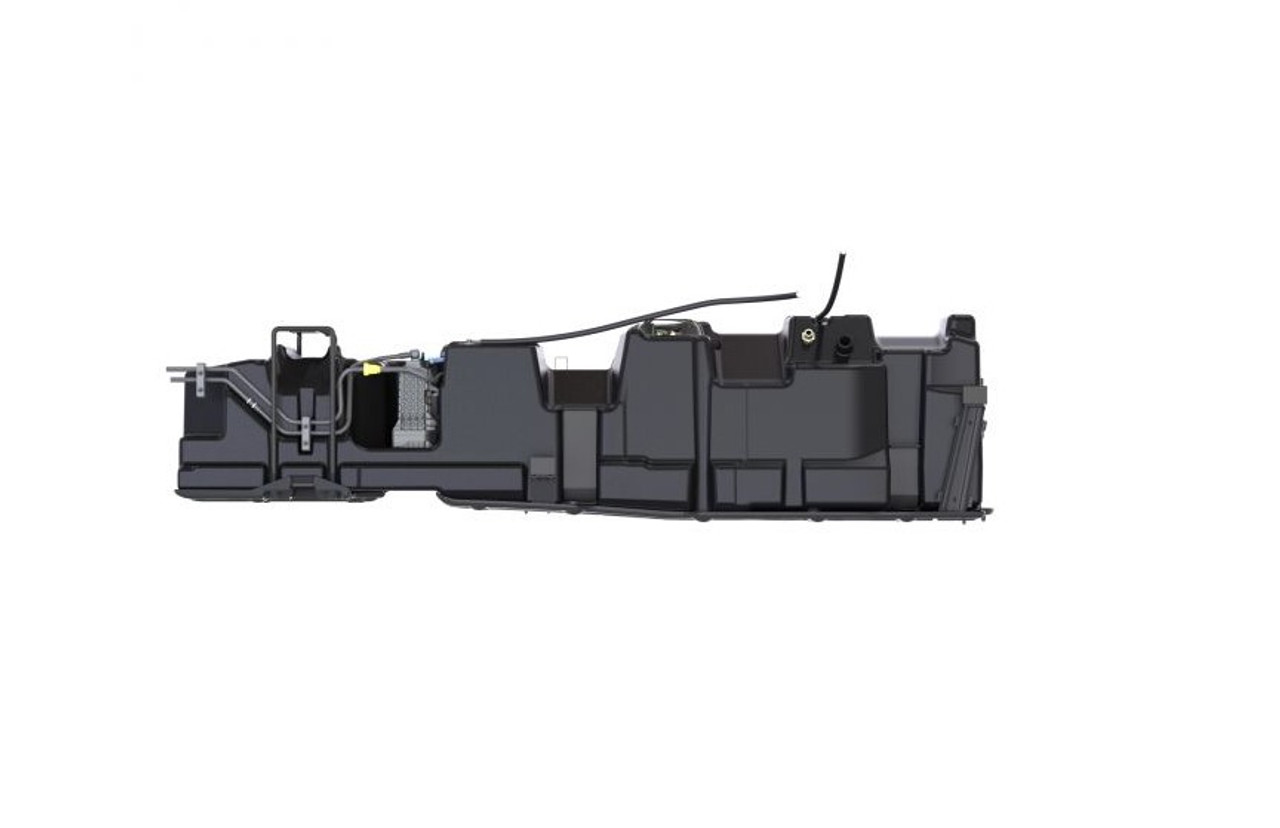

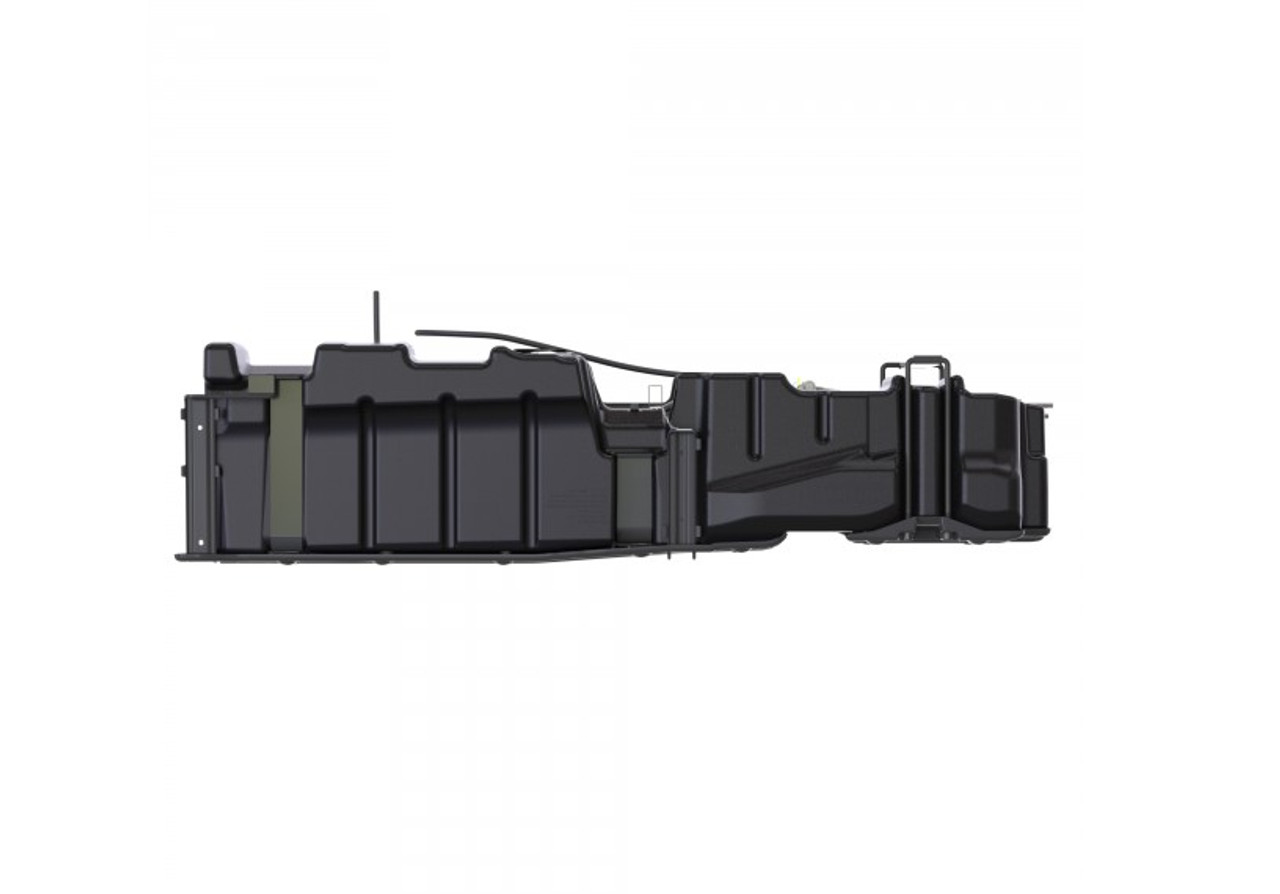

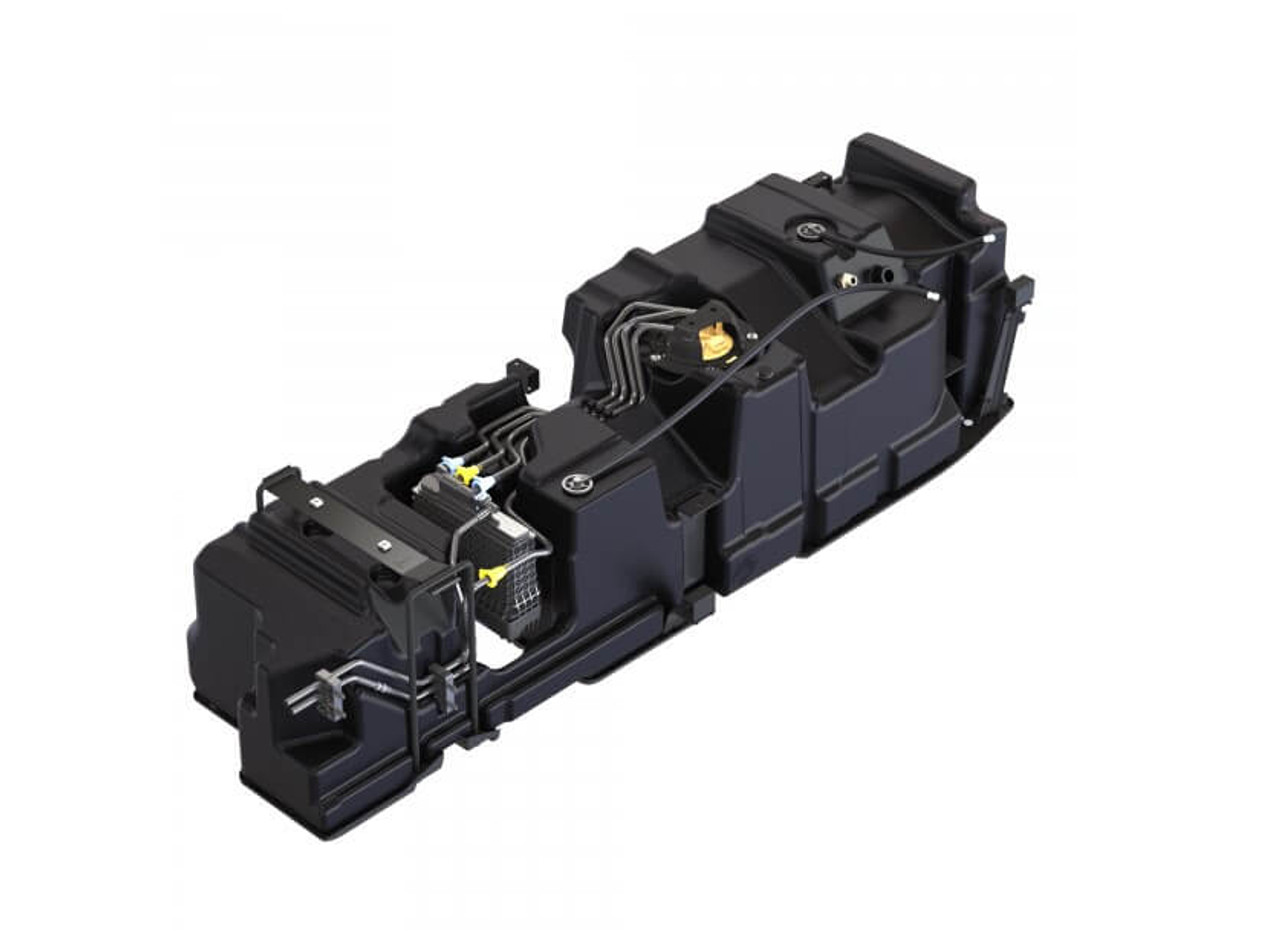

S&B's 60-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!
Innovative Baffled Design: S&B Tanks were engineered with a built-in baffled design. This helps to minimize fuel sloshing. This helps to contain fuel around the fuel pick up and prevents unwanted tank sloshing noise.
Easy Recalibration For Distance To Empty: S&B teamed up with EZ Lynk to make adjusting your Distance to Empty (DTE) FREE and EASY. This works for 2011-2022 Ford trucks. *No 2023 calibration at this time.
Compatible With The OE Skid Plate: If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skid plate. We also designed a smaller, factory style skid plate to cover the front of the larger S&B Tank.
Locked In For a True Seal: The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect seal and securely retains the fuel pump onto the tank.
Built to Last: S&B Tanks are made out of an extremely strong crosslink polyethylene and backed by our lifetime warranty.
Using A FASS / AIRDOG Lift Pump? Add S&B Sending Unit: S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps (FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.
Details:
- For 2017-2023 Ford Powerstroke 6.7L Crew Cab Short Bed
- Install can be done in 2-3 hours.
- Does not require any cutting, drilling, or modification.
- Tank Type: Midship
- S&B Capacity (Approximate): 60 Gallons
- Weight (Dry): 50lbs
- Ground Clearance compared To OE Tank: 1.75 inch Lower.
- Sump: No
- Drain: No
- Sending Unit: OEM
- Straps Included: Yes
- Compatible With Oe Skid Plate: Yes
- Compatible With Gooseneck And 5th Wheel: Yes
- Transfer Pump Ready: Yes
- Embedded Fitting Threat Size 1/2 NPT
- Street Legal In All US States: Yes
Note:
- According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.
- Do you have an Auxiliary Fuel Tank? Using these with our tanks will void the Lifetime Warranty.
