Product Description

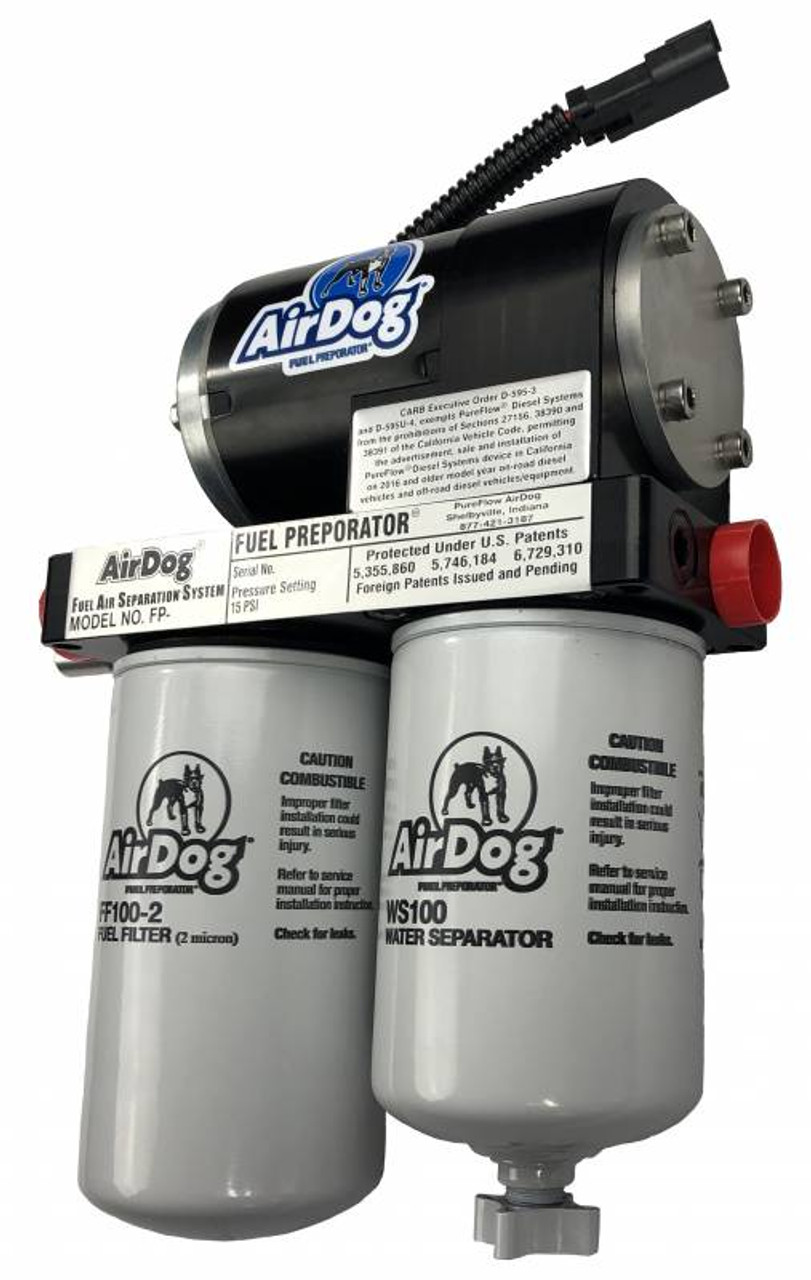

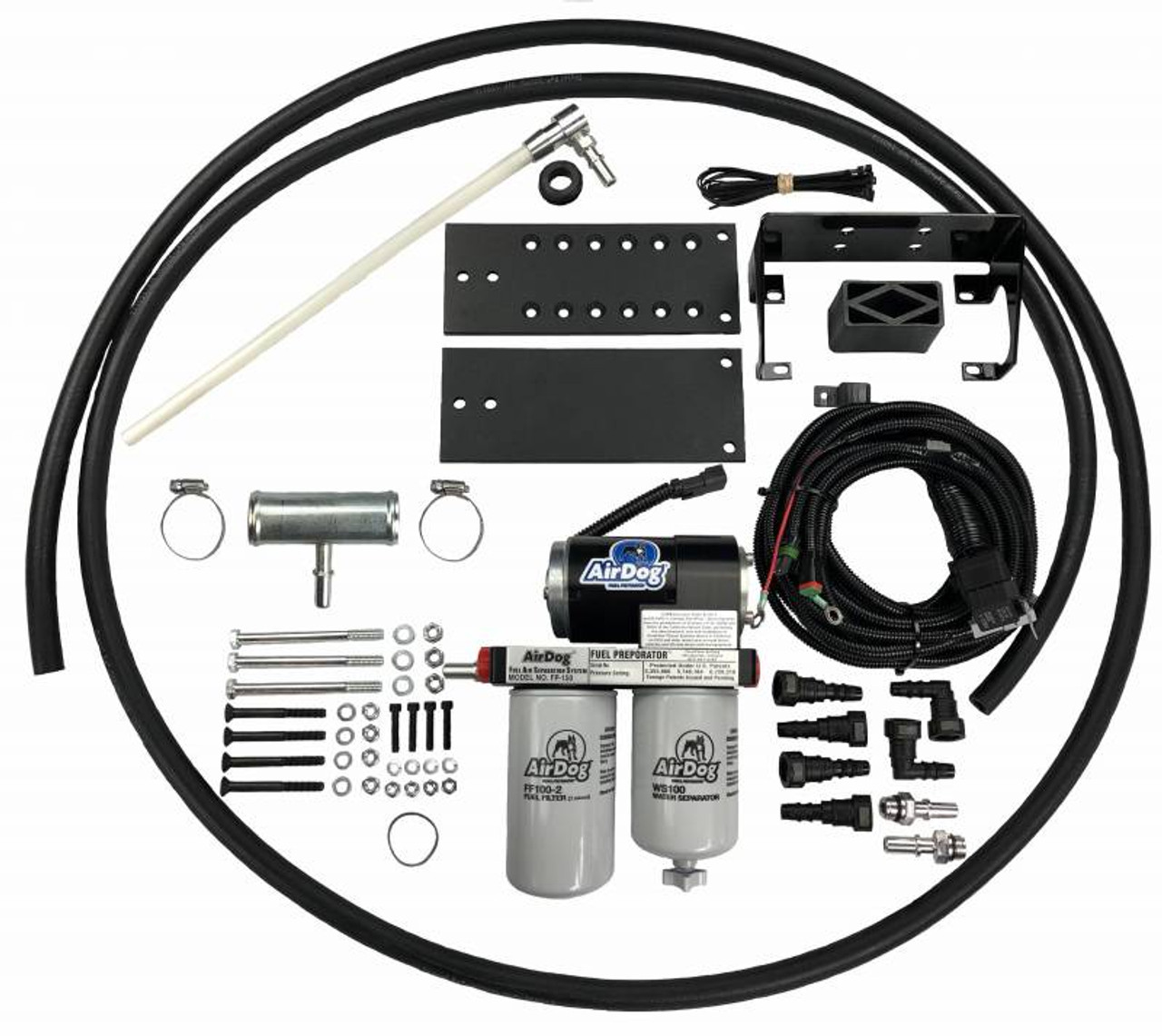

This is the AirDog I FP-100-4G fuel system for the 1998.5-2004 Dodge Ram VP44 and early CP3 Cummins with the in-tank fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A 1/2" draw straw is used to pull fuel from the tank to bypass the factory fuel pump. The pressure side connects directly to the VP44 or CP3 injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.
The AirDog system improves engine performance by:
-
Maintaining Correct Injection Timing
-
Eliminating Spray Pattern Disruption
-
Allowing for a Full Power Stroke and Complete Burn
Benefits of the AirDog:
-
Increased Fuel Economy
-
Increased Power Output
-
Increased Torque Output
-
Longer Injector Life
-
Improved Throttle Response
-
Optimized Engine Performance
-
AirDog also overcomes loss of power for diesel engines operating at higher altitudes.
- CARB EO: D-595-5
