Product Description

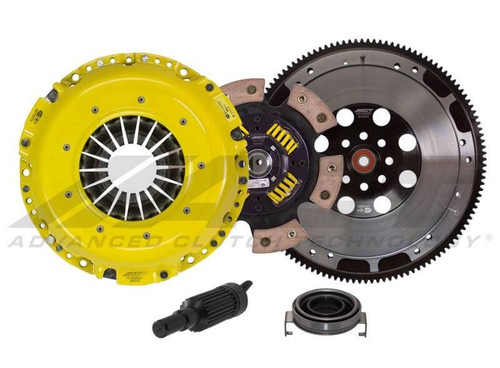

The SB11-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feature:
-
Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
- Life: Moderate friction life, extended by ACT's exclusive diaphragm design.
- Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
- Recommended Use: Recommended for high horsepower street or race use.
- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications:
- Item Description: HD/Race Sprung 6 Pad
- Product Weight (lbs.): 29.0
- Torque Capacity (ft/lbs.): 574
- Torque Capacity Over OE: 78%
- Disc Material: Ceramic
- Clutch Disc Diameter (Inches): 9.4
- Clutch Disc Diameter (Millimeters): 240
- Input Shaft Diameter (inches): 1
- Pressure Plate Type: Heavy Duty
- Flywheel Type: Streetlite
- Warranty: 12 Months
Note: Conversion Kit. Replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components.
