Product Description

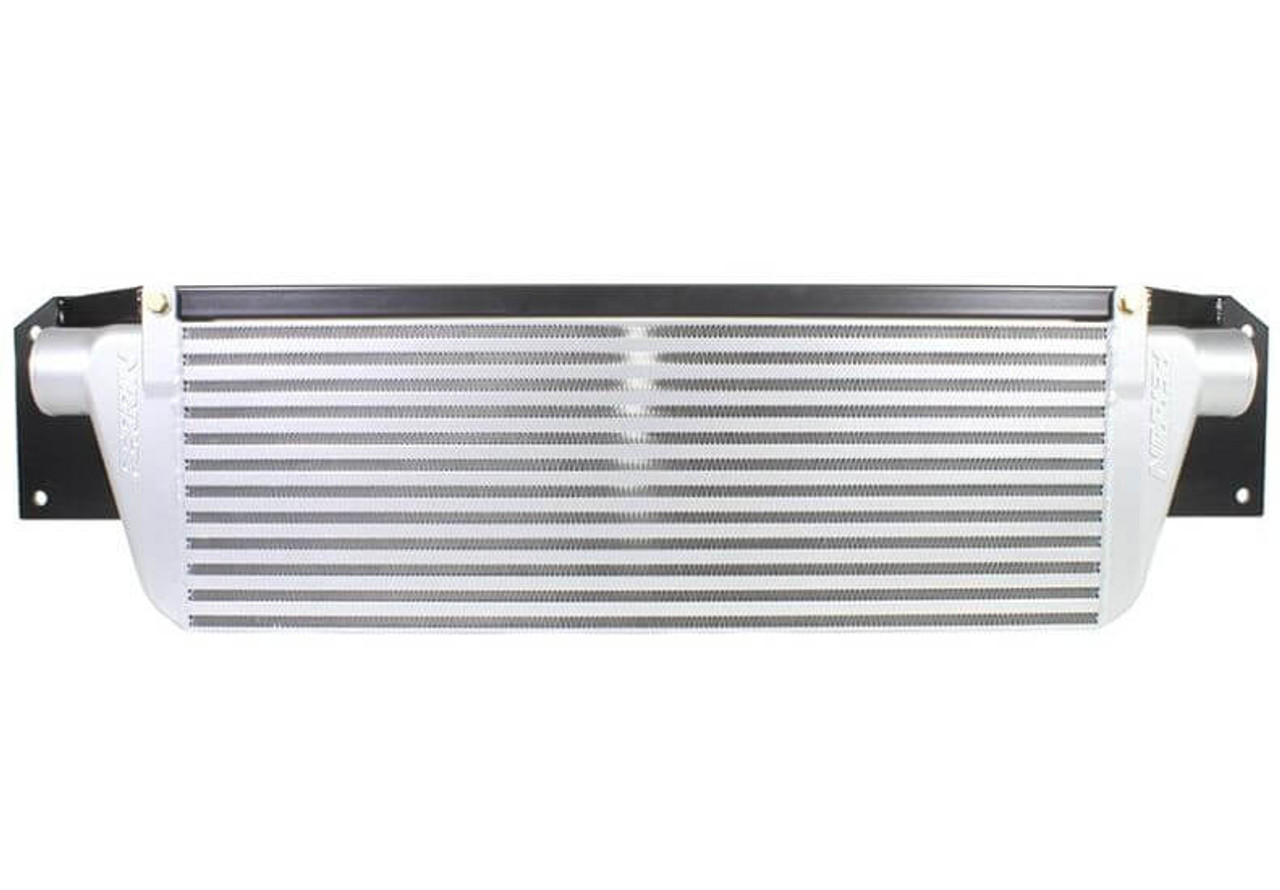

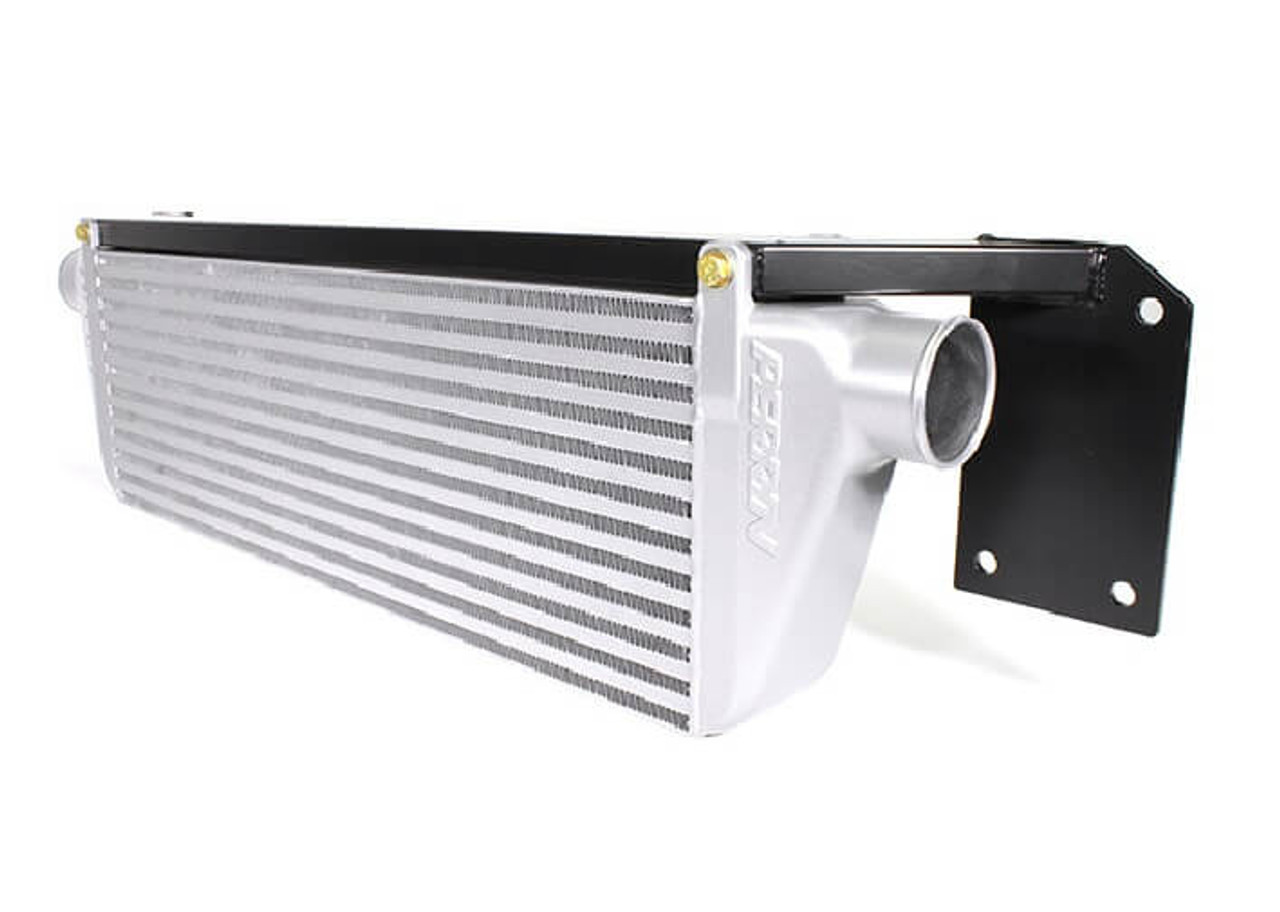

Swap out your overheated factory top mount intercooler for the PERRIN Front Mount Intercooler to get the most out of your turbocharged STI or WRX. Add power and a new bold look all in one! If you don't already have a set of PERRIN Boost Tubes!
No CARB Legal: This Product Cannot Be Ship To California!
Intercooler Core: The most important part of any intercooler system is the core. The core cools the charged air on the way to the engine. The factory Subaru tube and fin intercooler was designed to be easy to manufacture but is not good for performance. Our testing has shown the optimum core design is the 3/8” bar and plate style that has a 3/8” charge air and ambient air path, instead of the common 1/4” size. The PERRIN bar and plate core design is much more durable than tube and fin with the ability to withstand rocks and other debris, which may enter the scoop.
Intercooler Support Beams: Our intercooler support beam is constructed from boxed steel and powder coated black. Competitors use inexpensive aluminum bumper beams which save a little weight but are easily destroyed in a collision.
Finish: Every PERRIN intercooler is powder coated to further protect your intercooler from the elements making it look awesome for years to come. Our intercoolers come in two finish options, a bright silver or stealth black powder coat.
Cast End Tanks: The PERRIN Performance designed end tanks control for near perfect dispersal of hot air across the intercooler core. By eliminating any 90º corners adding a smooth, and gradual taper from top to bottom turbulence is eliminated. Each end tank incorporates an innovative mounting tab to secure the core to the mounting beam.
Pressure Testing: PERRIN Performance is one of the only intercoolers manufactures who pressure tests every intercooler. We pressurize every intercooler to 50 psi. on our special jigs. This ensures you never get a core with a leak! Even the slightest leak can cause your vehicle to lose power, literally bleeding turbo boost pressure out the intercooler.
Weight: The PERRIN front mount intercooler kit only adds 9lbs of weight! If you take all the factory pieces you remove and compare them to the PERRIN parts you are installing, you will find you only added 9lbs!
Logo Stencils: Included with our front mount intercooler is a free PERRIN logged intercooler stencil. Use the stencil to easily paint the PERRIN logo across the front of your intercooler. Simply peel, stick, paint, and remove.
Technical Specs:
- Finish: Texture Powdercoat
- Core Style: 3/8" Bar and Plate
- Core Dimensions: 28" x 9.25" x 3.5"
- Core Volume: 906.5 cu/in
- End tanks: Cast Aluminum
- Support Beam: Powder coated Boxed Steel
Included:
- (1) PERRIN Front Mount Intercooler Core with bumper beam
- (1) PERRIN Intercooler Stencil
California Residents, Proposition 65 Warning
